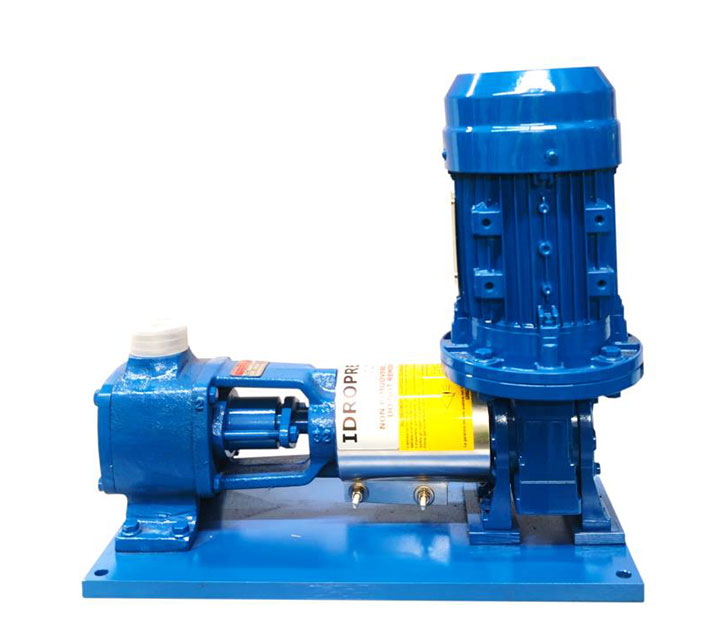

ROTARY POSITIVE DISPLACEMENT CYCLOIDAL GEAR PUMPS SERIES E

Cycloidal positive displacement pumps are particularly suitable for conveying and transporting low, medium, high viscosity liquids.

Very important is the fact that the liquid is pumped without the slightest pulsation, with continuous flow, all this to the advantage of the pump because valves, fittings and pipes are not subject to harmful vibrations.

Cycloidal gear pumps have a low peripheral rotor speed that allows a not indifferent longevity of the pump itself.

In conclusion, Series “E” pumps are easy to maintain: inspections and adjustments can be made without removing the pipes, motors and pumps themselves.

Technical Features

"E" Series Pump Operating and Maintenance Instructions Manual

Functional Features

The rotation of two gears, internal to each other, separated by a crescent (flow separator) generates a constant flow without pulsation that does not cause the pumped liquid to beat. The separation of the teeth generates the suction, their rejoining the delivery.

The cycloidal pumps are reversible, i.e. they operate in both directions of rotation, maintaining their operating characteristics unchanged and self-priming up to 7 ml of water column with a maximum pressure of 10 kg/cmq.
The flow rate of the produced range varies from 1 mc/h to 110 mc/h.

With the same flow rate, Idropres pumps are more compact than traditional external gear pumps.

executions

Special executions: born from a continuous research of materials
for the most varied applications.

types of seals

The pumps can be supplied with bare shaft or coupled to motors,
gearboxes or variators.
The rotation speed of the pump is defined according to different
parameters, the viscosity of the product to be pumped is essential.

PRINCIPLE OF OPERATION OF CYCLOIDAL PUMPS

How do cycloidal gear pumps work?

The rotation of two gears, internal to each other, separated by a crescent (flow separator) generates a constant flow without pulsation, which does not cause fluttering in the pumped liquid.

The separation of the teeth generates suction and their rejoining the delivery. Cycloidal pumps are reversible, i.e. they operate in both directions of rotation while maintaining their operating characteristics unchanged.

Find out in which sectors our rotary pumps can be used:

Chemical Products - Petroleum Products - Soaps and Detergents - Adhesives - Paints and Inks - High Temperature Liquids - Food Products

Request a Quote for

cycloidal positive displacement pumps series "E"

Idropres offers the design of custom-made pumps, sale and repair of positive displacement pumps of any brand.
